| Nominal Capacity | 2200mAh |
| Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
| Nominal Voltage | 3.0 V |
| Maximum Continuous Current | 1500mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 3000mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -40℃ to +85℃ |
| Battery Dimension | See drawing on pag |
| Max Weight | 26.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |

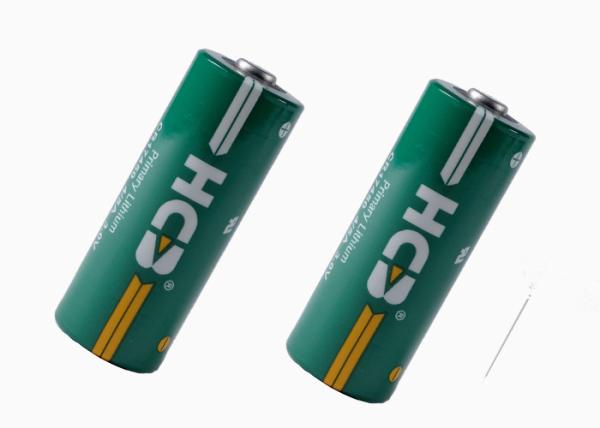

1. Battery Characteristic
The rated voltage of each battery is 3.0V
The specific energy density of each battery is 253Wh/kg
- Wide Operating Temperature Range
We provide a wide operating temperature range, from -40℃ to +85℃
Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year
High capacity, stable performance, without passivation
Battery sealing using the fully sealed structure to reduce the leakage of the battery, make the battery can be stored at room temperature for more than 10 years
High safety performance, reliable and environmental friendly
2. Main Applications
Ground force (individual soldier system, infantry fighting vehicles, robot soldier), navy (submarine, underwater robot), air force (fighters, unmanned surveillance drones), aerospace (satellites, shuttles), etc.
Wireless electric power tools, computer RAM & COMS, UPS, CNC machine tools, (TPMS), camera, video camera, timer, calculator, electric toys, lighting equipment, etc.
Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.
3. Manufacturing Advantages
- There is advanced automatic technology in HCB;
- Cathode is produced by the unique advanced manufacturing process;
- High power, high capacity(hermetic & semi sealing) or low temperature batteries are produced in HCB;
- It is workable for us to provide multiple cascade and parallel connecting ways and combining suggestions with HCB customers;
- The storage date is over 10 years to prove the reliability of the products.
4. Company Advantages
- HCB quality management meets the standard GB/T19001-2008/ISO9001:2008;
- The Environment Management System in HCB is accord with GB/T24001-2004/ISO14001:2004;
- The drop test is workable of HCB battery;
- HCB can provide the report for safe transport of goods to the customers;
- HCB Battery has passed the CE standard;
- The Rosh certificate can be given to you if required;
- UL Standard is workable for HCB Battery;
5. FAQS of General Safety Instructions
- Which environment is workable to store the battery?
In order to store the battery, the environment should be dry enough.
- What kind of case do we need to stop using the battery?
We need to stop using the battery when the abnormal heat release or leakage occurs.
- If you have children at home, what should you pay attention when we use our battery?
The battery should be kept out of the children firstly. If swallowed by children, please contact a physician at once.
- What the danger is if the battery is closed to the fire?
The batteries may be incinerated or mutilated if they are closed to the fire and it leads a possible burst or they may release the toxic materials.
- If the batteries are closed to the fire, what may happen?
They will be hot very fast and can lead the gas and other toxic materials leakage if they are closed to fire.
- If the positive and negative polarity of a battery is directly connected, what will happen?
If + and - polarity of battery is directly connected, it is called short circuit and it will lead the leakage of gas or materials or a violent rupture.
- What will happen if the batteries are thrown into the water?
The batteries are not able to be thrown into the water. This can cause the water explosion.
