| Nominal Capacity | 3000mAh |
| Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
| Nominal Voltage | 3.0 V |
| Maximum Continuous Current | 1500mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 2000mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -40℃ to +70℃ |
| Battery Dimension | See drawing on pag |
| Max Weight | 23.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |

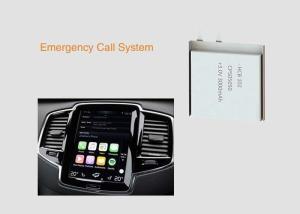

1. Lithium Primary Li-MnO2 Soft Battery 3000mAh CP505050 Characteristic
- High Voltage
Nominal voltage up to 3.0 V - High Energy Density
Energy density up to 450Wh/kg - Wide Operating Temperature Range
-40°C to +70°C - Long Shelf Life
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin - Variable Design
Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available - Greater Safety
The structure of the battery offers greater safety to meet customer’s requirement for special applications
2. Lithium Primary Soft Battery 3000mAh CP505050 Main Applications
Automatic meters (water meter, electric meter, gas meter), conventional meters, etc.
Well pressure meters in high temperature, float meter, logging while drilling (LWD), measure while drilling (MWD), etc.
3. Characteristics
Lithium is the lightest of metals and it floats on water. It also has the greatest electrochemical potential which makes it one of the most reactive of metals. These properties give Lithium the potential to achieve very high energy and power densities permitting batteries with very long useful life and small cell packages.
Because Lithium reacts violently with water, as well as nitrogen in air, this requires sealed cells. High-rate Llithium cells build up temperature and pressure if they are short circuited or abused. Thus, the cell design needs to include safety vents, which release the pressure or rupture to prevent uncontrolled explosion.
4. Manufacturing Advantages
HCB battery co., LTD., is located in Wuhan Wujiashan Hong Kong international airport economic development zone, the total area of 32000 square meters, is the national high and new technology enterprise.Company specialized in r&d, manufacturing, sales, lithium-ion battery, including: green high-performance lithium manganese dioxide battery series, green series of high-performance lithium thionyl chloride batteries, aluminum-plastic film soft packing card square of 9 v batteries, lithium batteries, etc.
5.Use Warning
- This battery is a non-rechargeable battery.
- DO NOT CHARGE THE BATTERY!
- Do not use if the battery casing is damaged.
- Please discharge the battery for a few minutes with 100mA.
- Don't use different models of battery in series.
