| Nominal Capacity | 10000mAh |
| Battery discharged at continuous current 1mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃ |
| Nominal Voltage | 3.0 V |
| Maximum Continuous Current | 3000mA |
| Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃ |
| Maximum Pulse Discharge Current | 5000mA |
| Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃ |
| Storage Condition | Temperature ≤ 30℃ Humidity ≤ 75%RH |
| Operating Temperature | -40℃ to +70℃ |
| Battery Dimension | |
| Max Weight | 63.0g |
| Self-discharge Rate | 2% |
| Max self-discharged rate at ambient temperature 23±2℃ |
| Shelf Life | 10 years |
| Ambient temperature 23±2℃ |

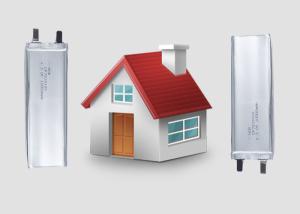

1. CP7839109 Li-MnO2 Primary Soft Battery 10000mAh 3V Characteristic
The nominal voltage of single cell up to 3.0V
We provide the specific energy density up to 450Wh/kg
- Wide Operating Temperature Range
Battery working temperature range from -40℃ to +70℃
Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin
Variable Design
Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available
Greater Safety
The structure of the battery offers greater safety to meet customer’s requirement for special applications
2. CP7839109 Li-MnO2 Primary Soft Battery 10000mAh 3V Main Applications
Cardiac pacemaker, respirator, oxygenator, inspection devices, monitoring devices, infusion pump, etc.
Smoke detectors, security alarms, seismometers, locking system, monitoring system, etc.
RFID products, road toll transponder, IC cards, etc.
3. Manufacturing Advantages
- The technology in HCB is advanced and automatic;
- The cathode manufacturing process in HCB is advanced and unique;
- The main solutions are high power, high capacity(hermetic & semi sealing). Low temperature etc;
- Combing suggestions and multiple cascade and parallel connecting ways are workable for HCB.
4. FAQS of General Safety Instructions
- If the batteries are closed to the fire, what may happen?
- They will be hot very fast and can lead the gas and other toxic materials leakage if they are closed to fire.
- If the positive and negative polarity of a battery is directly connected, what will happen?
- If + and - polarity of battery is directly connected, it is called short circuit and it will lead the leakage of gas or materials or a violent rupture.
- What will happen if the batteries are thrown into the water?
- The batteries are not able to be thrown into the water. This can cause the water explosion.
