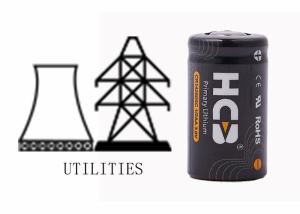

1050mAh 3.0V Non-Rechargeable Li-MnO2 Cylindrical Batteries 1/2AA Lithium Manganese Dioxide Cell CR14250SC
1.Key Features:
High Voltage
• Nominal voltage up to 3.0 V
High Energy Density
• Specific energy density up to 260 Wh/kg
Wide Operating Temperature Range
• -40°C to +85°C
Long Shelf Life
• Self discharge rate is less than 2% per year at room temperature
• High capacity, stable performance, no passivation effect
• Glass-to-metal seal
• Bobbin and spiral structure is available for different applications
2.CR14250SC Characteristics (23±2oC, in 1 year)
- Open Circuit Voltage ≥3.1V
- Nominal Capacity 1050mAh
- Maximum Continuous Current 20mA
- Battery discharged for minimum 50% of rated capacity
- Maximum Pulse Discharge Current 100mA
- Battery discharged for minimum 50% of rated capacity
- with max pulse for 3 seconds after 27 seconds break
- Storage Condition Temperature ≤ 30℃
- Humidity ≤ 75%RH
- Operating Temperature - 40~+85℃
- Self-discharge Rate ≤2%
3.Main Applications
Automatic meter reading(AMR), advanced metering infrastructure(AMI),electricity meters, gas meters, water meters, heat meters, etc.
Smoke detectors, security alarms, seismometers, digital door lock system, etc.
4. Manufacturing Advantages
- The technology in HCB is advanced and automatic;
- The cathode manufacturing process in HCB is advanced and unique;
- The main solutions are high power, high capacity(hermetic & semi sealing). Low temperature etc;
- Combing suggestions and multiple cascade and parallel connecting ways are workable for HCB;
- The products can be stored for 10 years which is very reliable.
5. Company Advantages
- Quality management system of HCB is conformity with GB/T19001-2008/ISO9001:2008 standard;
- HCB Environment Management System meets the standard GB/T24001-2004/ISO14001:2004;
- The battery can pass drop test if you need;
- Report for safe transport of goods can be provided with you if needed;
- We can provide you with the CE certificate if you need;
- Rosh Standard is workable for HCB Battery;
- UL Standard is workable for HCB Battery;
